Description

Large Negative Air Machine Design

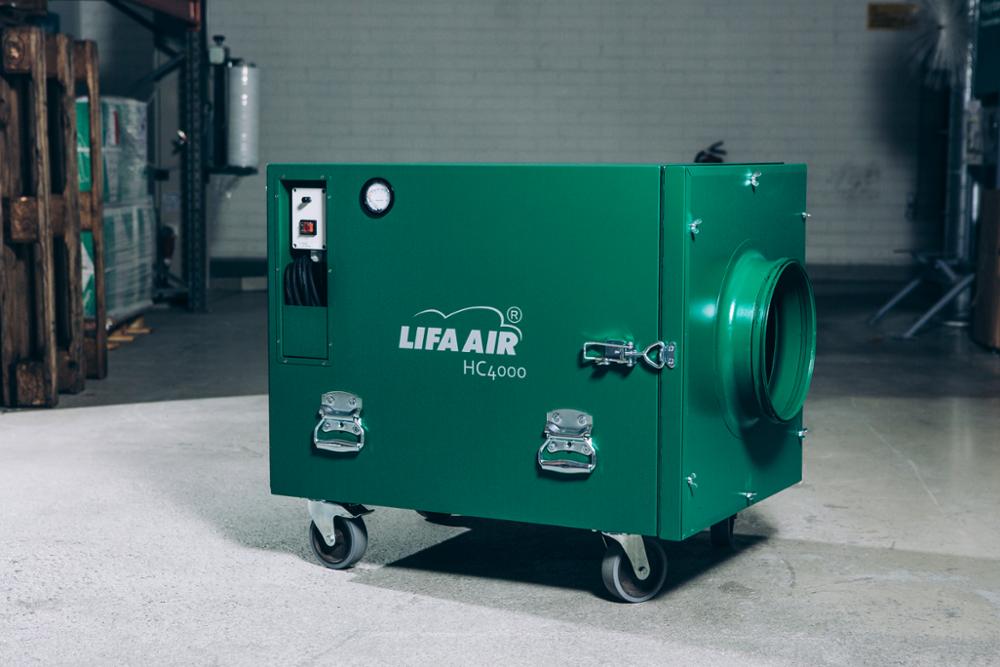

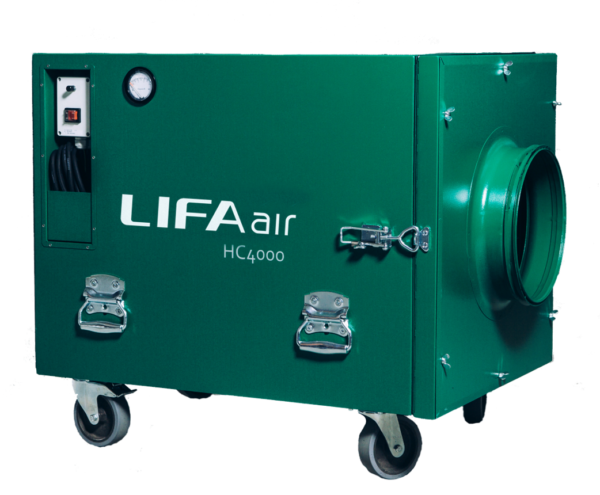

Lifa Air Hepa Clean 4000 is a large negative air machine for use on large ductwork cleaning projects. The powerful  machine is ideal for use on large systems in all kinds of environments. The unit is available in 230V or 110V. HC4000 is perfect for use on large and medium sized ductwork systems where dirt build is heavy such as, toilet extracts, laundry extracts, residential plastic ductwork systems and local exhaust ventilation (LEV). HC4000 utilises an EC motor meaning it’s incredibly energy efficient and quite when in operation. This large negative air machine is a must for any ductwork hygiene technician that needs high power extraction.

Filtration

Typically the HC4000 is equipped with bag filters, when required HEPA filtration can be added. The unit is connected to the ductwork system via a separate flexible duct hose. For speed of connection smaller hoses may be used as well as access panel duct hose connection doors.

The HC4000 is also suitable for Asbestos removal works, or for air scrubbing in environments or enclosures where air needs to be filtered and cleaned.

Operation

HC4000 is incredibly easy to use. Once connected to a power supply and switched on the power button will illuminate. Fan speed is easily controlled with a speed dial to increase or decrease airflow. Filter contamination can be monitored on a pressure dial, pressure increases as the filter becomes dirty. Filter changing is carried out by unfastening two latches on the side of the unit, filters are then accessible for disposal and replacement. HC4000 can work in temperatures up to 40 °C (100 °F) and has very low power consumption.
