Description

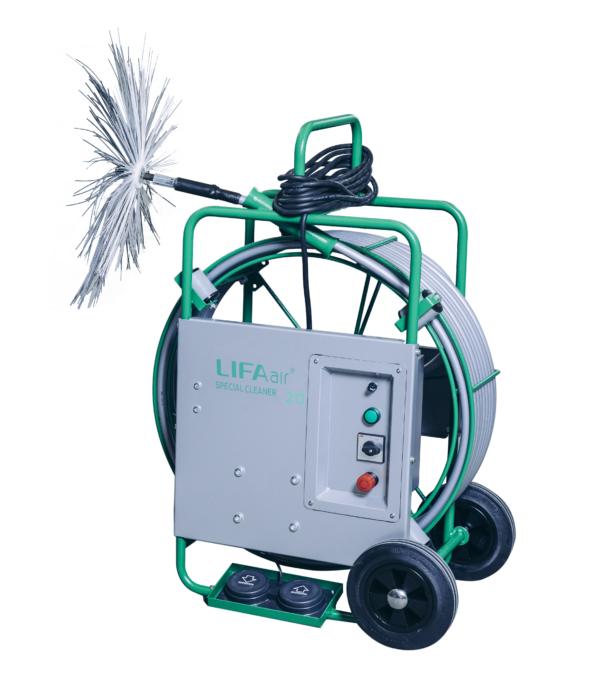

Small Electric Rotary Brush Machine Design

The Lifa Air Special Cleaner 20 is the number one professional choice for cleaning small and medium sized ductwork. It is a popular choice of small electric rotary brush available in 110 or 230V voltages and delivers 5Nm of torque, more than enough power for dust removal projects.

The unit may be used to clean ductwork ranging from 100-400mm in size and can clean all ductwork shapes rectangular, circular and oval. The small electric rotary brush machine has a 20m cleaning shaft which is both strong and flexible. Brush rotation speed up to 570rpm is easily controlled by a speed control dial.

This machine has proved incredibly popular in the UK market for ductwork cleaning in accordance with TR19 and is also used in environments such as marine, medical and pharmaceutical. Special Cleaner 20 is manufactured by Lifa Air to ISO9001 and ISO14001 standards and is CE marked.

Operation

The small electric rotary brush motor is incredibly quiet when in operation and delivers consistent power for ductwork cleaning. Brush rotation is controlled by a foot pedal, this can be linked to an optional remote control if necessary. Brush speed is controlled from 225-570rpm by a speed dial on the machine control box. An emergency stop button is fitted to the control box for immediate shut off.

Circular, rectangular and oval ductwork shapes may be cleaned by changing brush shape and material at the brush end connection.

Machine operation is usually a two man operation but with a remote control it is possible to operate with one person. The machine reduces the need for manual entry and confined space work to clean ductwork systems in accordance with TR19 and BS15780.
