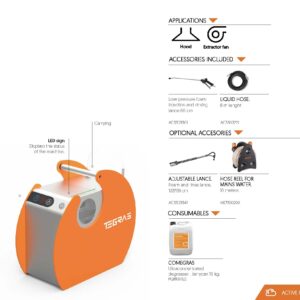

Tegras iFoam Compact – Active Foam Generator
POA

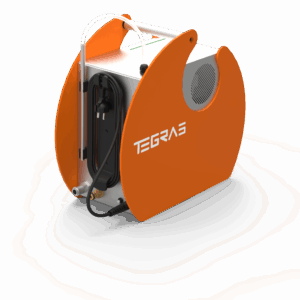

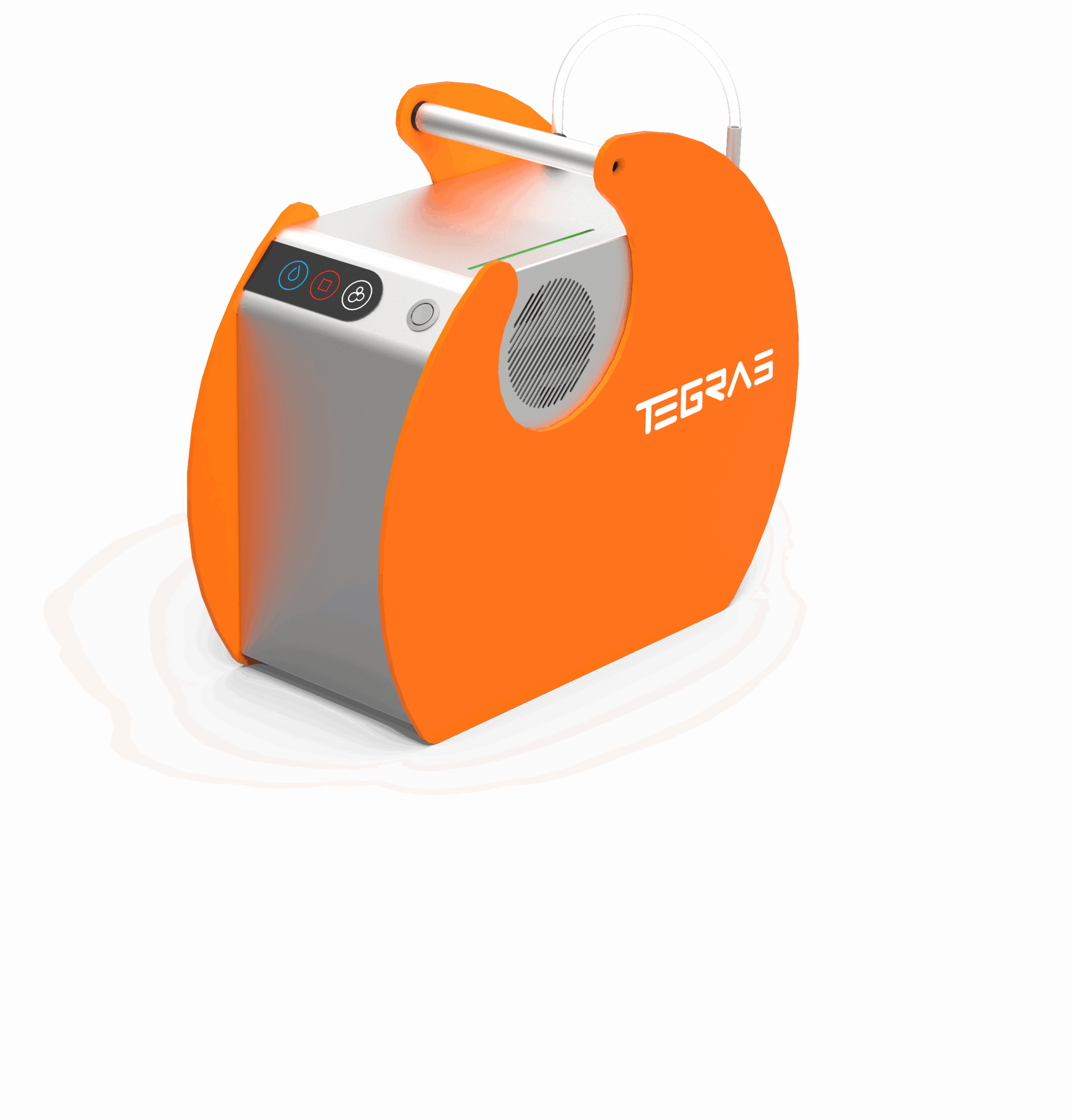

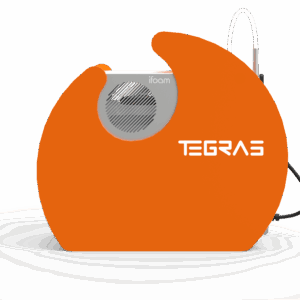

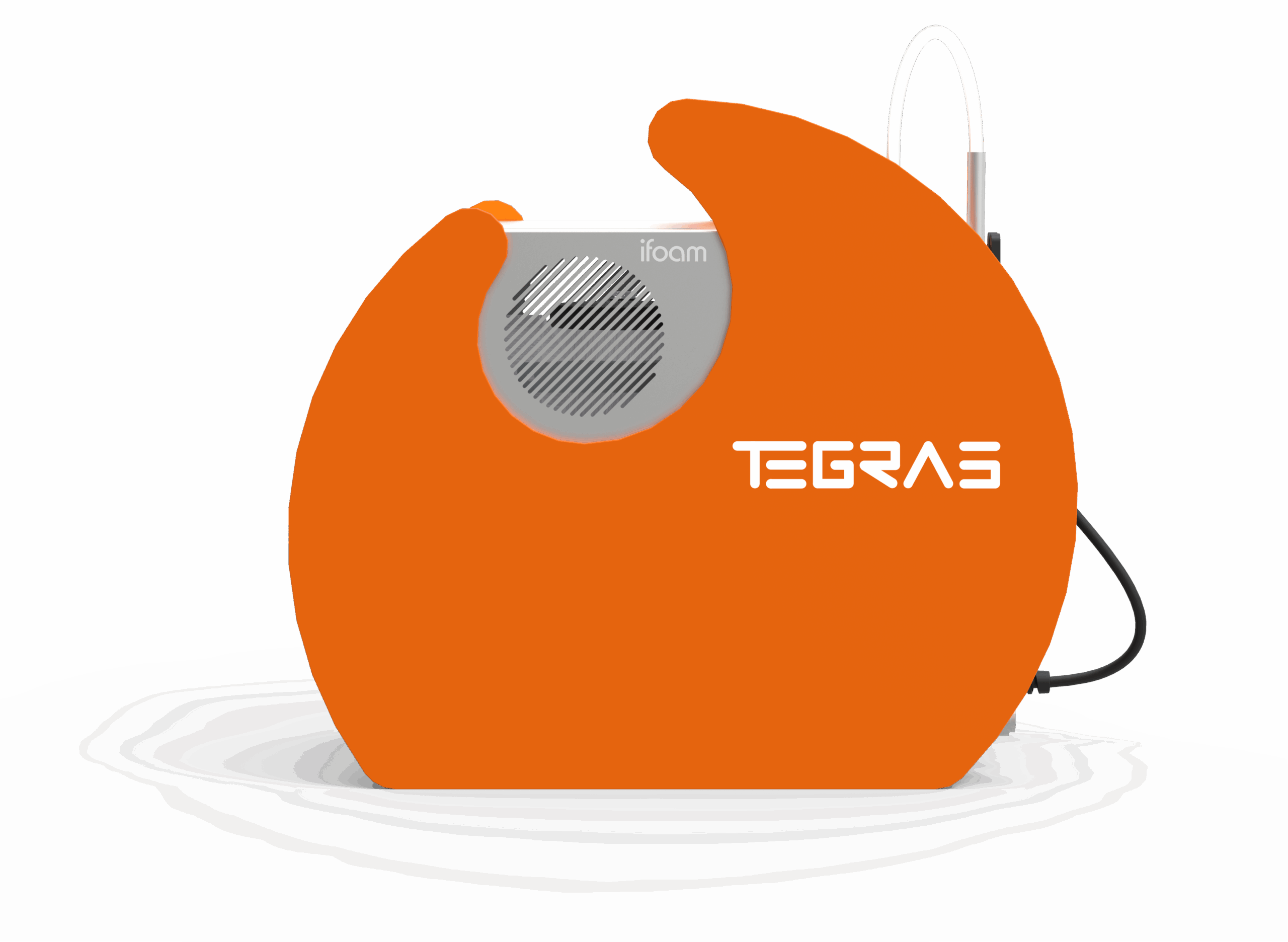

The iFoam Compact is an electric, highly portable foaming and rinsing machine designed for small take-away restaurants and chip shops. Its compact design is suitable for taking into hard-to-reach spaces, such as roofs and loft voids, for component foaming and rinsing.
When partnered with the Tegras iBrush, the operator has an ideal equipment package for cleaning small kitchen extract ductwork systems. The iFoam Compact is also compatible with larger Tegras rotary brush machines, Multipro, Forte, and Eon.
https://youtu.be/10XmC7Nq–I?si=ktbP1dEzcvOG9q2l
Why Choose the Tegras iFoam Compact?
The iFoam Compact isn’t just a smaller version of a standard foamer. Instead, it is a purpose-built Active Foam Generator. In fact, it’s engineered to revolutionise how you tackle grease in confined spaces. Unlike traditional liquid spraying, this unit generates a dense, dry foam. This clings to vertical ductwork and hoods, rather than running off surfaces quickly. An extended dwell time allows the chemical to break down stubborn carbonised grease. As a result, the machine ends up doing the hard work so you don’t have to.
Smart Technology for Efficient Cleaning

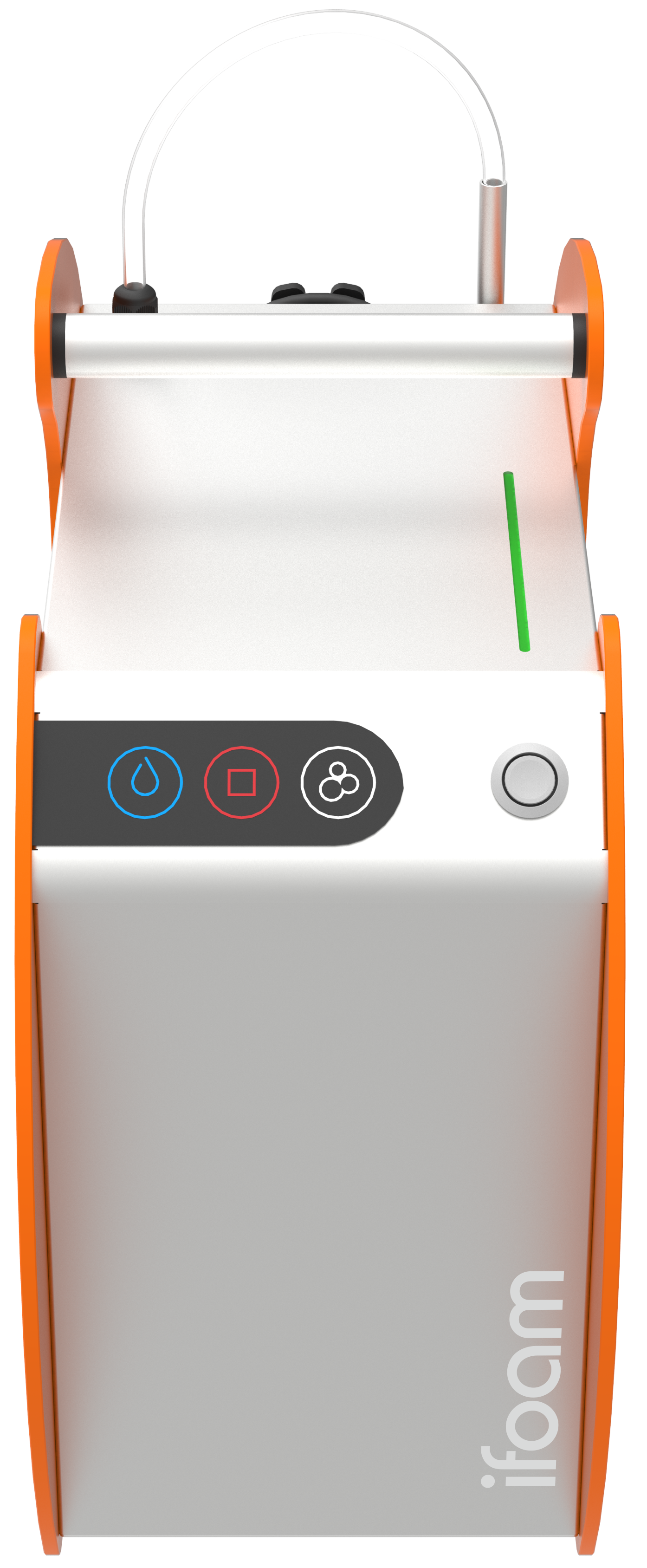

The iFoam Compact is equipped with the latest “Smart” technology. It features an intuitive LED control interface that simplifies operation for your team:
- Green Light: Machine is ready.
- White Light: Active Foaming mode is engaged.
- Blue Light: Rinsing mode is active.
This visual feedback ensures operators can switch seamlessly between foaming and rinsing cycles. The feedback eliminates confusion, speeding up the cleaning process in busy commercial kitchens.

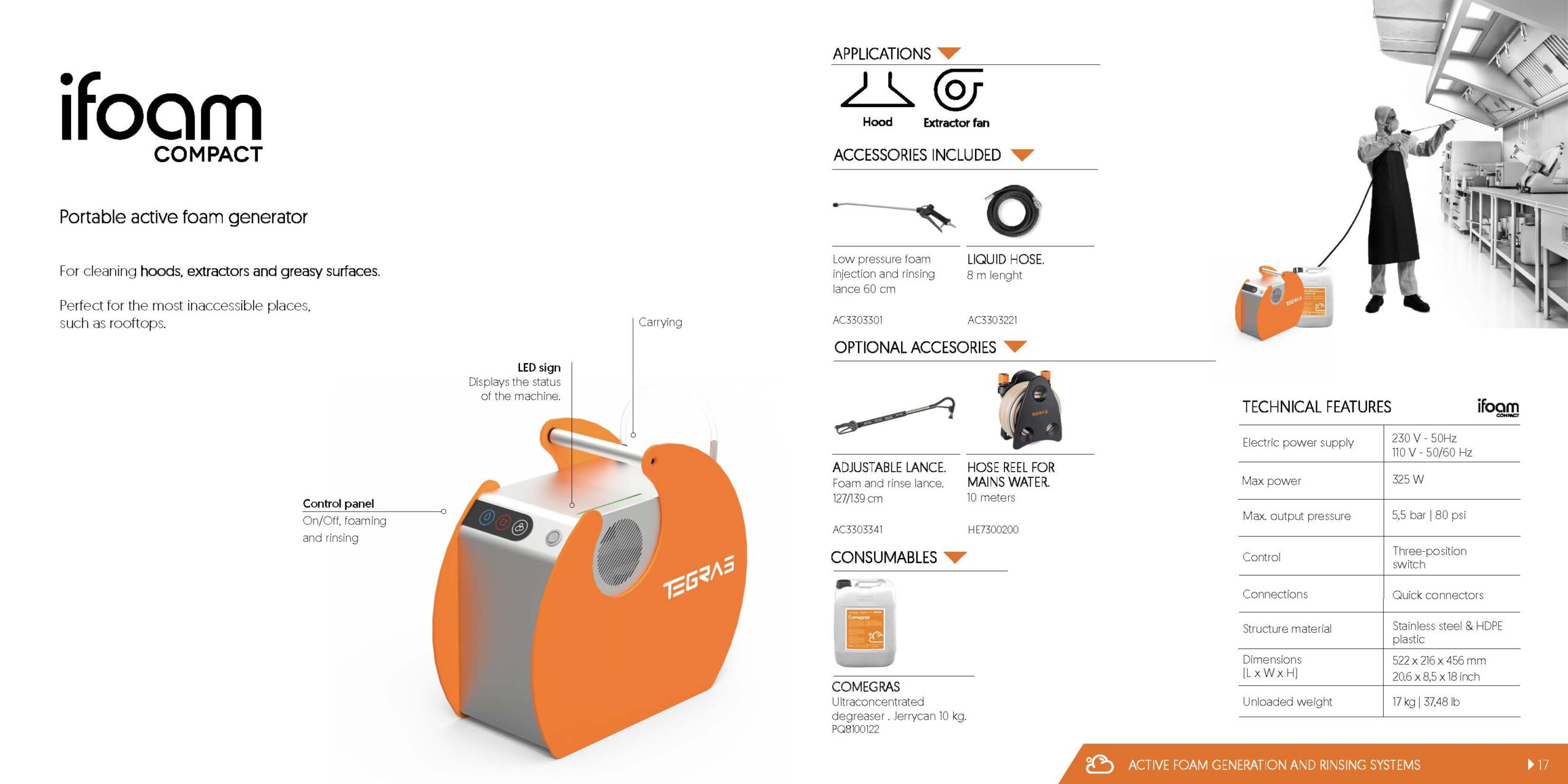

Technical Specifications and Operational Benefits
- Safe Low-Pressure Rinsing: Delivers a maximum output pressure of 5.5 bar (80 psi). This makes it safe for delicate ductwork seals and flexible connections. These are the elements for which high-pressure washers might cause damage.
- Integrated Chemical System: The unit is designed to work perfectly with the Comegras degreaser. It automatically mixes the optimal ratio of chemicals, air, and water to produce a rich foam that adheres to grease instantly.
- Ultimate Portability: The iFoam Compact weighs just 17kg with a rugged carrying handle. It is the only professional-grade solution portable enough for rooftops, ladder access, and tight plant rooms.

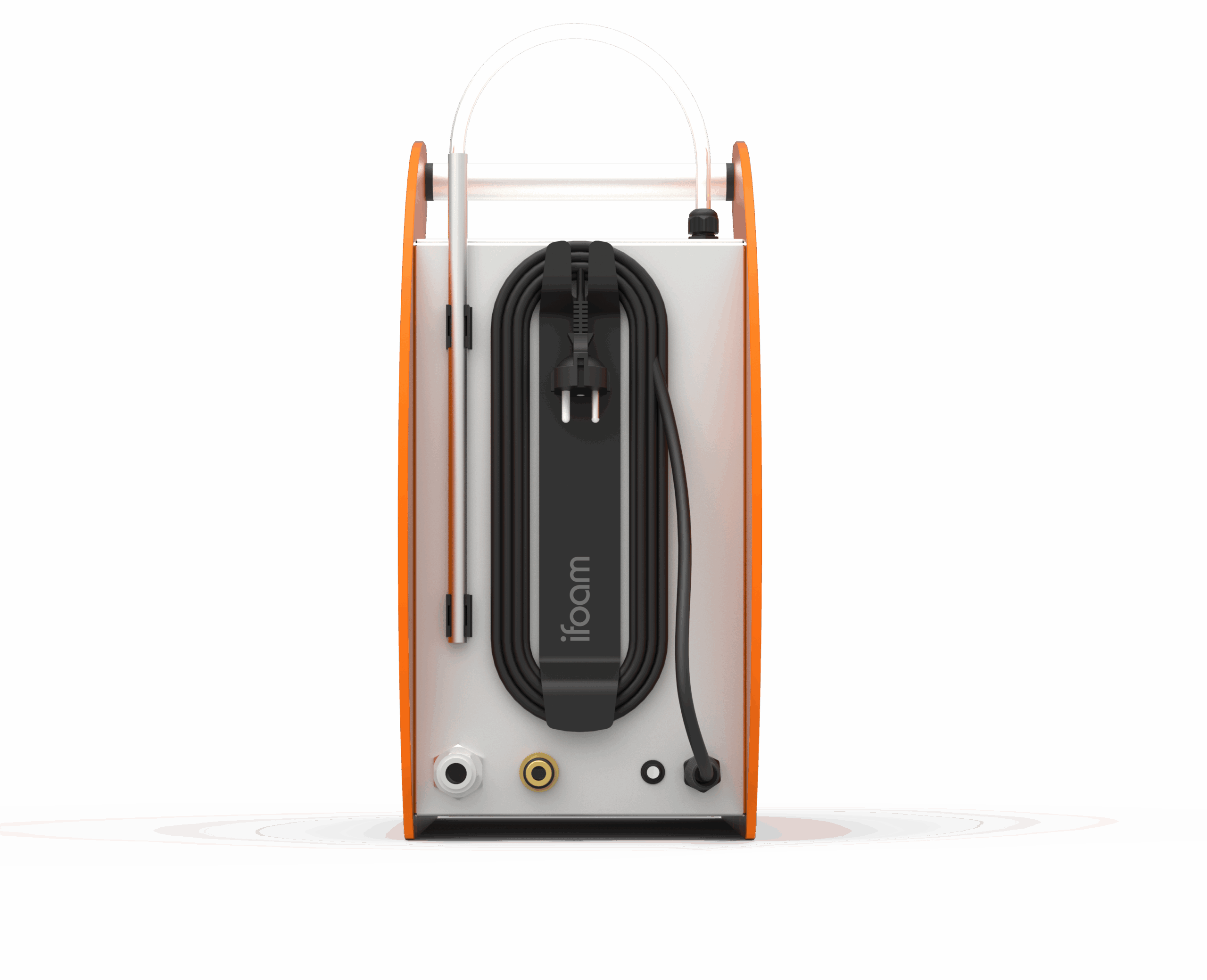

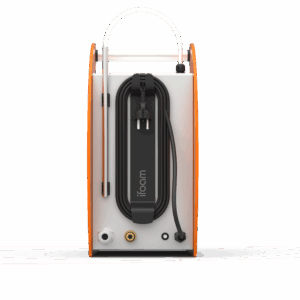

- Mains Water and Plug-and-Play: Runs off a standard 230V electric supply and connects directly to mains water. This eliminates the need for bulky external compressors for the foaming process.
Achieve TR19 Grease Compliance
The iFoam Compact is an essential tool for meeting TR19® Grease standards. By enabling chemical application in areas that manual scraping tools cannot reach, you can ensure a “clean to bare metal” finish. This applies even in the most complex extraction systems.
Ideal For:
- Vertical duct risers and bends.
- Kitchen canopy plenums and filters.
- Small diameter ductwork (when paired with the Tegras iBrush).
- Remote fan units on rooftops.
| Weight | 17 kg |
|---|---|
| Dimensions | 53 × 21 × 46 cm |
